Parking Brake Relocation Kit

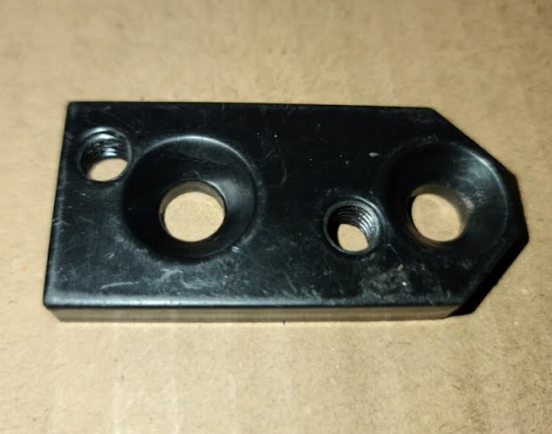

Description Sprinter Van Seat Swivel, hand brake relocation adapter for a 2001-2006 Sprinter Van Sprinter Van Handbrake Relocation Bracket – 2001–2006 T1N (Driver Side Seat Swivel Compatibility) Upgrade your van layout with a handbrake relocation adapter specifically designed to work with driver-side seat swivels on 2001–2006 Sprinter Vans (T1N chassis). This bracket lowers and repositions the handbrake assembly to allow full swivel range without interference — a must-have for any functional camper or mobile workspace build. Whether you’re installing a new swivel base or enhancing comfort and usability in your existing conversion, this relocation kit ensures smooth rotation and clean clearance for your driver seat. �� Key Features: Designed for T1N Sprinters: Engineered to fit 2001–2006 Sprinter Vans with factory or aftermarket seat swivels. Swivel-Compatible: Allows the driver seat to rotate freely without hitting the handbrake lever. Durable Construction: CNC-cut steel bracket with corrosion-resistant finish for strength and longevity. Bolt-On Installation: Includes mounting hardware for quick and easy install — no welding or cutting required. Essential for Swivel Installs: Ensures proper ergonomic clearance and prevents handbrake lever damage. �� Specifications: Fits: 2001–2006 Sprinter Van (T1N) Material: Hardened steel Includes: Relocation bracket, hardware, and install instructions Compatibility: Works with most seat swivel bases on the market Note: Required for proper swivel seat operation on the driver side of T1N Sprinters. Passenger side does not require this bracket.   Handbrake Relocation Bracket Installation – 2001–2006 Sprinter (T1N) Step 1: Remove the Handbrake Assembly Using a 13mm socket or wrench, remove the two factory mounting bolts (shown as item #11 in the reference image). Carefully remove the handbrake cover. Trim the cover as needed: For View/Navion models, follow the cut shown in Figure 12. For standard passenger or cargo vans, a small trim (approx. 1 inch) is typically sufficient to clear the fire extinguisher bracket. Reinstall the handbrake cover onto the handbrake assembly once trimming is complete. Step 2: Install the Relocation Bracket Using a 5mm Allen wrench or socket, install the two taper-head bolts and the relocation bracket (see Figure 13). The tapered end of the bracket should face the rear of the vehicle. If bolt holes do not line up with the factory threads, you may need to drill out the tapered holes on the relocation bracket. Reinstall the handbrake assembly onto the relocation bracket using the original 13mm bolts. Note: If the bolts bottom out, add a washer spacer to prevent overtightening. Be cautious to avoid cross-threading. If bolts won’t thread cleanly, remove the assembly and die grind the mounting holes as needed. Reinstall the brake cable pin and access cover. Step 3: Adjust the Handbrake Cables After repositioning the handbrake assembly, the cables will require adjustment. Start by releasing the handbrake. Locate the handbrake adjustment assembly underneath the van, just in front of the rear axle (see Figure 14). Using a 13mm socket and short extension, loosen the four mounting bolts (see Figure 15). Slide the housing rearward (toward the back of the van, Figure 16) and retighten the bolts. To adjust the rear brake cables: Loosen the set bolt with a 13mm socket and short extension (Figure 17). Rotate the cam plate ½” to ¾” clockwise (Figure 18), then tighten the bolt. Test the handbrake by engaging and releasing it. Ensure the van rolls freely in neutral with the brake released. Re-adjust if necessary. Step 4: Modify the Pedestal Cover (if applicable) Remove the pressboard pedestal cover and mark a line 2.87″ from its rear edge. Cut the board in two along the marked line (Figure 7). Place the smaller section across the front portion of the seat pedestal. Proceed to install the swivel base and seat, following passenger-side installation instructions. Be sure to pull the seatbelt wiring connector through the center swivel opening and reconnect it to the seat harness (Figure 8   t1n-2001-2006-Sprinter-Van-brake-adapter-for-seat-swivels-installation
